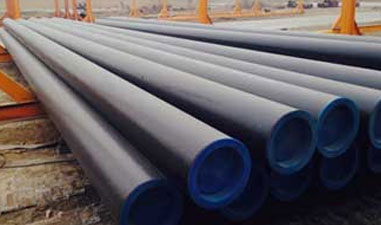

ASTM A672 GR B60 class 12 Pipe

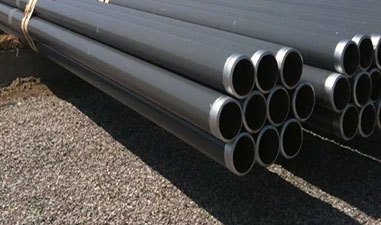

ASTM A672 GR B65 CL 22 Seamless Pipe, Check ASTM A672 Pipe Dimension

ASTM A672 GR B60 class 12 Pipe is electric fusion welded and has different classes to it. The material can be welded with the aid of filler material. There are different specifications such as ASTM A 672, GR B60 and others. Navstar Steel is a leading supplier and manufacturer of the ASTM A672 GR B65 CL 22 Seamless Pipe and other classes of the pipes in different dimensions.

ISO Certified Manufacturer of A672 Pipe Material, ASME SA672 CC70 ERW Pipe, ASTM A672 GR C70 CL 12 Welded Pipe in India

The outer diameter of the pipes ranges from 12 inches to 64 inches. The wall thickness of the pipes ranges from 2mm to 60mm and the length of the pipes ranges from single random, double random and custom cut to length sizes. The ASTM A672 Pipe can have different surface treatments. They could be bare, painting black, varnished, galvanized, anti-corrosion PE coated, etc.


There are different methods involved in making the pipes such as the hot rolled and cold drawn methods. There are different classes to the ASTM A672 GR C70 CL 12 Welded Pipe that range from class 10 through class 50. The applications of the pipes vary from petrochemicals to marine industrial applications. The strength and corrosion resistance of the A672 Pipe Material makes it available for a host of applications. The wear and tear resistance of the material makes it long lasting. Please contact us for the ASME SA672 CC70 ERW Pipe prices and more information.

ASTM A672 GR B65 CL 22 Seamless Pipe Material Specification

Standards ASTM A672 / A672 C55 LSAW STEEL PIPES
Specification ASTM A672 /ASME SA672
Type EFW (ELECTRIC FUSION WELDED PIPES)
Class Designation CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Outer Diameter Size 16" NB To 100" NB (Nominal Bore Size)
Wall Thickness Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Length 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Ends Plain Ends / Beveled Ends / Coupling
Delivery Conditions As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
Coating Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Other Testing NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Get ASTM A672 C70 Pipe Material, ASTM A672 Grade C70 Pipe Weight Chart and Buy A672 Gr B65 Square Pipe at Best Price in India

ASTM A672 Pipe Standard Weight Chart

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule Pipe # Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
0.147 0.546 1.09 XHY 80 .0478 .0122
0.188 0.464 1.31 160 .0528 .0088
0.294 0.252 1.72 XXHY .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
0.154 0.742 1.48 XHY 80 .0853 .0225
0.219 0.612 1.95 160 .1006 .0153
0.308 0.434 2.44 XXHY .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
0.179 0.957 2.17 XHY 80 .1606 .0374
0.250 0.815 2.85 160 .1904 .0271
0.358 0.599 3.66 XXHY .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
0.191 1.278 3.00 XHY 80 .2913 .0666
0.250 1.160 3.77 160 .3421 .0549
0.382 0.896 5.22 .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
0.200 1.500 3.63 XHY 80 .4118 .0918
0.281 1.338 4.86 160 .5079 .0730
0.400 1.100 6.41 .5977 .0494
2 2.375 0.109 2.157 2.64 10 .4205 .1898
0.154 2.067 3.66 STD 40 .5606 .1743
0.218 1.939 5.03 XHY 80 .7309 .1534
0.250 1.875 5.68 .8045 .1434
0.281 1.813 6.29 .8666 .1344
0.344 1.687 7.47 160 .9806 .1161
0.436 1.503 9.04 XXHY 1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53 10 .6870 .2833
0.203 2.469 5.80 STD. 40 1.0640 .2487
0.216 2.443 6.14 1.1169 .2435
0.250 2.375 7.02 1.2468 .2301
0.276 2.323 7.67 XHY 80 1.3386 .2202
0.375 2.125 10.02 160 1.6371 .1842
0.552 1.771 13.71 XXXHY 1.9971 .1280
3 3.50 0.120 3.260 4.34 1.0411 .4336
0.156 3.188 5.58 1.3122 .4147
0.172 3.156 6.12 1.4265 .4064
0.188 3.124 6.66 1.5342 .3984
0.216 3.068 7.58 STD. 40 1.7241 .3840
0.250 3.000 8.69 1.9372 .3672
0.281 2.938 9.67 2.1207 .3521
0.300 2.900 10.26 XHY 80 2.2253 .3431
0.438 2.624 14.34 160 2.8774 .2811
0.600 2.300 18.6 XXHY 3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98 10 1.3776 .5768
0.226 3.548 9.12 STD. 140 2.3939 .5136
0.250 3.500 10.02 2.6001 .4998
0.281 3.438 11.17 2.8562 .4821
0.318 3.364 12.52 XHY 80 3.1400 .4617
0.636 2..728 22.87 XXHY 4.8795 .3085
4 4.5 0.120 4.260 5.62 10 1.7612 .7404
0.156 4.188 7.24 2.2354 .7156
0.188 4.124 8.67 2.6296 .6942
0.203 4.094 9.32 2.8173 .6838
0.219 4.062 10.02 3.0184 .6725
0.237 4.026 10.80 STD. 40 3.2145 .6613
0.250 4.000 11.36 3.3611 .6528
0.281 3.938 12.67 60 3.7021 .6326
0.312 3.876 13.97 4.0273 .6126
0.337 3.826 15.00 XHY 80 4.2713 .5972
0.438 3.624 19.02 120 5.1790 .5361
0.531 3.438 22.53 160 5.8997 .4822
0.674 3.152 27.57 XXHY 6.7927 .4054
5 5.563 0.188 5.187 10.80 4.1161 1.0979
0.219 5.125 12.51 4.7279 1.0716
0.258 5.047 14.63 STD. 40 5.4500 1.0391
0.281 5.001 15.87 5.8644 1.0204
0.312 4.939 17.51 6.4074 .99647
0.344 4.875 19.19 6.9358 .9696
0.375 4.813 20.80 XHY 80 7.4300 .9449
0.500 4.563 27.06 120 9.2534 .8495
0.625 4.313 32.99 160 10.7976 .7590
0.750 4.063 38.59 XXHY 12.0954 .6734
6 6.625 0.109 6.407 7.59 5 3.5769 1.6748
0.134 6.357 9.30 10 4.3475 1.6488
0.156 6.313 10.79 5.0107 1.6260
0.188 6.249 12.94 5.9351 1.5937
0.203 6.219 13.94 6.3804 1.5780
0.219 6.187 15.00 6.8261 1.5620
0.250 6.125 17.04 7.6905 1.5306
0.280 6.065 18.99 STD. 40 8.4958 1.5008
0.312 6.001 21.06 9.3416 1.4688
0.344 5.937 23.10 10.111 1.4391
0.375 5.875 25.05 10.893 1.4082
0.432 5.761 28.60 XHY 80 12.224 1.3541
0.500 5.625 32.74 13.711 1.2909
0.562 5.501 36.43 120 14.9806 1.2346
0.625 5.375 40.09 16.1821 1.1787
0.719 5.187 45.39 160 17.8243 1.0977
0.864 4.897 53.21 XXHY 20.025 .9784
1.000 4.625 60.13 21.7719 .8727
1.125 4.375 66.14 23.1237 .7809

ASTM A672 GR C70 CL 12 Welded Pipe Size Chart In Mm

ASTM A672 GR B60 class 12 Pipe OD
mm
Pipe WT
mm
in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 10S 2.73
42.16 3.56 40S 3.44
42.16 4.85 80S 4.53
42.16 6.352) 160 5.69
48.26 2.77 10S 3.16
48.26 3.68 40S 4.11
48.26 5.08 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 10S 5.35
73.03 5.16 40S 8.77
73.03 7.01 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 10S 7.53
101.60 5.74 40S 13.78
101.60 8.08 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Basic Types Of A672 Pipe Material

coupling pvc and carbon bend a672 efw 1.0315 seamless steel pipe

coupling pvc and carbon bend a672 efw 1.0315 seamless steel pipe

astm a672 48*3.5 Seamless Steel Pipes SSAW Pipe

astm a672 48*3.5 Seamless Steel Pipes SSAW Pipe

astm grade a36 square a672 efw black 12 inch seamless steel pipe

astm grade a36 square a672 efw black 12 inch seamless steel pipe

Astm A672 C70 Cl22 Spiral Welded Tube Erw Cold Rolled Black Square Pipe

Astm A672 C70 Cl22 Spiral Welded Tube Erw Cold Rolled Black Square Pipe

schedule 40 astm A672 cold rolled steel pipe

schedule 40 astm A672 cold rolled steel pipe

ASTM A672 Carbon Seamless Steel Pipe

ASTM A672 Carbon Seamless Steel Pipe

ASTM A672 Welded Pipe 6-100 mm thick

ASTM A672 Welded Pipe 6-100 mm thick

3m, 6m ASTM A672 Grade A45 Pipes

3m, 6m ASTM A672 Grade A45 Pipes

Black ASTM A672 CC65 Pipes, Length: 3mtr, 6mtr

Black ASTM A672 CC65 Pipes, Length: 3mtr, 6mtr

ASTM A672 EFW Carbon Steel Pipe

ASTM A672 EFW Carbon Steel Pipe

Carbon Pipes EFSW ASTM A 672 GR60 CL 22, Size: 1 inch

Carbon Pipes EFSW ASTM A 672 GR60 CL 22, Size: 1 inch

Black ASTM A672 Seamless Pipes, Size: 1/2 Inch And 3 Inch

Black ASTM A672 Seamless Pipes, Size: 1/2 Inch And 3 Inch

ASME SA672 CC70 ERW Pipe Equivalent Grades

ASTM Grade Material JIS/JPI
A55 A285 Gr C JPI-SB42
B55 A515 Gr 55 -
B60 A515 Gr 60 JPI-SB42
B65 A515 Gr 65 JPI-SB46
B70 A515 Gr 70 JPI-SB49
C55 A516 Gr 55 -
C60 A516 Gr 60 JPI-SLA24B (1)
C65 A516 Gr 65 JPI-SLA33B (1)
C70 A516 Gr 70 -
D70 A537 CL 1 -
E55 A442 Gr 55 -
E60 A442 Gr 60 JPI-SPV24
L65 A204 Gr A JPI-SB46M
L70 A204 Gr B JPI-SB49M (2)
L75 A204 Gr C -
N75 A299 -
Stock an extensive range of A672 B70 Cl 32 Hollow Pipe, ASTM A672 grade c70 Welded Pipe, check Composition of ASTM A672 B65 CL22 Hex Pipe

ASTM A672 C70 Cl22 Pipe Chemical Structure

Specification Steel grade Chemical composition Remarks
C Si Mn P S Ti
Pipes for pressure service ASTM A671, A672 -/A45 -/0.17 - 0.98 0.035 0.035 - A671/ A672
-/A50 -/0.22 -
CA55/A55 0.28 -
-/B55 -/0.20 0.13 ~0.45
CB60/B60 0.24
CB65/B65 0.28
CB70/C70 0.31 1.30
-/C55 -/0.18 0.55 ~0.98
CC60/C60 0.21
CC65/C65 0.24 0.79 ~1.30
CC70/C70 0.27

ASTM A672 C70 Pipe Material Mechanical Properties Table

Products Steel Grade BASE METAL MECHANICAL COMPOSITION Welding point tensile strength (N/mm2) Remarks
Yield point (N/mm2) Tensile Stregth (N/mm2) Test Pieces Elongation (%)
Pipes for pressure service ASTM A671, A672 -/A45 -/165 -/310~450 - -/30 -/310~450 A671/ A672
-/A50 -/185 -/345~485 -/28 -/345~485
CA55/A55 205 380~515 27 380~515
-/B55 -/205 -/380~515 -/27 -/380~515
CB60/B60 220 415~550 25 415~550
CB65/B65 240 450~585 23 450~585
CB70/B70 260 485~620 21 485~620
-/C55 -/205 -/380~515 -/27 -/380~515
CC60/C60 220 415~550 25 415~550
CC65/C65 240 450~585 23 450~585
CC70/C70 260 485~620 21 485~620

Dimensions Chart of ASTM A672 Grade C70 Pipe

NB Size OD 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
1/8” 10.29 1.2 1.73 2.41
1/4” 13.72 1.7 2.24 3.02
3/8” 17.15 1.7 2.31 3.2
15 1/2” 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
20 3/4” 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 1” 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 1 1/4” 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 1 1/2” 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 2” 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 2 1/2” 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
80 3” 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
90 3 1/2” 101.6 5.7 2.1 3.1 5.74 8.08 8.08
100 4” 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
125 5” 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
150 6” 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
200 8” 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
250 10” 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
300 12” 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
350 14” 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
400 16” 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
450 18” 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
500 20” 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
550 22” 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
600 24” 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
650 26” 660.4 9.5 7.9 13 12.7
700 28” 711.2 9.5 7.9 13 12.7
750 30” 762 9.5 6.4 7.9 7.9 13 12.7
800 32” 812.8 9.5 7.9 13 17.5 12.7
850 34” 863.6 9.5 7.9 13 17.5 12.7
900 36” 914.4 9.5 7.9 13 19.1 12.7
Manufacturing high-class Steel Pipe ASTM A672 C70, A672 Rectangular Pipe in India, offer lowest price of ASTM A672 C70 Cl22 Pipe

A672 Gr B65 Square Pipe Price List in India

Price of ASTM A672 Pipe A672 Pipe Material Price
Mild Steel ASTM A672 EFW Pipes, Thickness: 1-2 Rs 80/ Kilogram(s)
Carbon Steel ASTM / ASME A 672 B65 Welded Pipe Rs 120/ Kg
Astm a672 carbon schedule 40 steel black iron pipe Rs 150/ Kg
