Hastelloy Wire

Alloy C276 Welding Wire, C22 Tig Wire Price List

Hastelloy Wire is used in aerospace, pollution control, chemical plants and other high corrosive conditions. The material has higher corrosion resistance even at elevated temperatures. Navstar Steel is a leading manufacturer and supplier of the Hastelloy Wire in different grades and dimensions.

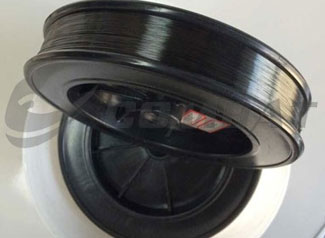

Hastelloy Wire

Alloy C276 Welding Wire

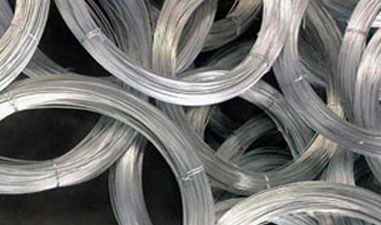

C22 Tig Wire

ONGC Certified ASTM B574 Hastelloy C22 Mig Wire Supplier in India, Hastelloy Alloy C276 Coil Wire, Hastelloy C276 ASME SB574 Bright Wire

The wires are preferred for various chemical processing applications. The material can withstand corrosion cracking up to 1900F and avoid oxidation as well. The material comes in different grades such as B-2, B-3, C-4, C276, C2000, X and Hastelloy G-30. The Alloy C276 Welding Wire is one of the most commonly used. It can be used in chemical, petrochemical applications with supreme corrosion resistance and strength.

Table of Contents

• Alloy C276 Welding Wire Chemical Composition Standard
• C22 Tig Wire Mechanical Strength
• ASTM B574 Hastelloy C22 Mig Wire Price in india
• Hastelloy Alloy C276 Coil Wire Physical Composition
• Hastelloy C276 ASME SB574 Bright Wire Types
• Alloy UNS N10276 Wires Bobbin Equivalent
• Weight of ASME SB574 Alloy C276 Wire Rope in KG
• Hastelloy C22 Welding Wire Specification Chart
• Hastelloy C276 UNS N06022 Filler Wires Dimensions

The material can be used as replacement for the Hastelloy C22 Wire types as well. The material comes under B574 specification. As a ASTM B574 UNS N10276 Mig Wire Supplier we supply the wires in all different grades, types and dimensions. All grades of hastelloys have high pitting resistance as well. Due to the material composition of the Hastelloy C276 Wire it has good resistance against reducing agents as well. It can also be used in acid production units and in acidic processing applications as well. There are different finishes like the ASME SB574 Bright Wire. Please contact us for further information on the wires and the prices.

Alloy C276 Welding Wire Chemical Composition Standard

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

C22 Tig Wire Mechanical Strength

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Alloy UNS N10276 Wire Bobbin, 30 micron ultra fine woven ASME SB574 Alloy C276 Wires Rope, Check Price List of Hastelloy C22 Welding Wire

ASTM B574 Hastelloy C22 Mig Wire Price in india

UNS N10276 Wire Bobbin Price List	Alloy C276 Welding Wires Per Unit (INR)
ASTM B574 UNS N06022 C22 wires rod price	$20.00/ Kilogram
alloy n wires for autoclave	$18.00-$40.00/ Kilogram
Hastelloy C276 Wires Price	$20.00-$40.00/ Kilogram
Alloy C-276 Wires Price list in India	$18.00/ Kilogram

Hastelloy Alloy C276 Coil Wire Physical Composition

Density	lb/in³	0.321
	g/cm³	8.89
Specific Heat	Btu/lb•°F	0.102
	J/kg•°C	427
Melting Range	°F	2415-2500
	°C	1325-1370
Thermal Conductivity	Btu•in/ft²•h•°F	67.9
	W/m•°C	427
Young's Modulus	103 ksi	29.8
	GPa	205
Shear Modulus	103 ksi	11.4
	GPa	79
Permeability	200 oersted (15.9 kA/m)	1.0002
Poisson's Ratio		0.307

Hastelloy C276 ASME SB574 Bright Wire Types

ERNiCrMo4 MIG welding wires Hastelloy c276

UNS N0276 hastelloy c276 ErNiCrMo4 mig welding wires

Hastelloy c276 alloy material 4mm flexible spring steel wires

Hastelloy c-276 AWS welding wires ERNiCrMo-4

Hastelloy C276 wires with diameter 0.75

ERNiCrMo-4 welding wires for hastelloy c276 UNS N10276

alloy c276 nickel welding wires

hastelloy c276 mig welding wires 1.2mm

alloy UNS N0276 2.4819 C276 welding wires

Thermal Spray Alloy C-276 Wires

1/2 Inch UNS N010665 / Alloy B2 - Wires

0.15mm - 6mm thick Alloy wires

Alloy UNS N10276 Wires Bobbin Equivalent

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	–	ХН65МВУ

Weight of ASME SB574 Alloy C276 Wire Rope in KG

Wire Diameter(mm)	Aperture (mm)	Mesh	Length(M)	Weight (Kg)
4.00	40	0.58	30	142
4.00	30	0.75	30	182
3.2	25	0.87	30	141
3.2	20	1.1	30	169
2.6	20	1.12	30	116
2.6	18	1.23	30	127
2.0	15	1.49	30	92
2.0	12	1.8	30	110
1.8	7	3	30	149
1.8	6	3.25	30	161
1.6	7	3	30	117
1.6	6	3.35	30	131
1.6	3	5.5	30	215
1.4	6	3.5	30	105
1.2	8	2.7	30	59
1.2	7	3.1	30	68
1.0	6	3.6	30	55
1.0	5	4.25	30	65
0.8	2.83	7	30	68
0.8	2.38	8	30	78
0.7	1.4	12	30	90
0.7	1.84	10	30	75
0.6	1.21	14	30	77
0.6	1.52	12	30	66
0.5	1.3	14	30	54
0.5	1.09	16	30	61

Check Hastelloy C276 UNS N06022 Filler Wire Weight Chart, 1 5 40 50 micron high density UNS N10276 Tig Wire, C276 Alloy W Weld Wire Specification

Hastelloy C22 Welding Wire Specification Chart

Specifications	ASTM B574 ASME SB574
Dimensions	ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Length	100 mm TO 6000 mm
Diameter	10 mm To 100 mm
Specialize	Filler Wires, Coil Wires

6 mesh 7 mesh 8 mesh Hatelloy GOST ХН65МВУ Electrode, Hastelloy DIN NR. 2.4819 Spring Wires, Check ASTM B574 Hastelloy C276 Wire Mesh Dimension

Hastelloy C276 UNS N06022 Filler Wires Dimensions

Mesh	Wire Diameter		Opening (mm)
	mm	inch
2	1.80	0.071	10.90
3	1.60	0.063	6.866
4	1.20	0.047	5.15
5	0.91	0.036	4.17
6	0.711	0.028	3.522
8	0.610	0.024	2.565
10	0.508	0.020	2.032
12	0.457	0.018	1.660
14	0.417	0.016	1.397
16	0.345	0.014	1.243
18	0.315	0.012	1.096
20	0.315	0.0124	0.955
22	0.315	0.0124	0.840
24	0.315	0.0124	0.743
26	0.295	0.0116	0.682
28	0.295	0.0116	0.612
30	0.274	0.011	0.573
32	0.254	0.010	0.540
34	0.234	0.0092	0.513
36	0.234	0.0092	0.472
38	0.213	0.0084	0.455
40	0.193	0.0076	0.442
42	0.193	0.0076	0.412
44	0.173	0.0068	0.404
46	0.173	0.0068	0.379
48	0.173	0.0068	0.356
50	0.173	0.0068	0.335
60 × 50	0.193	0.0076	-
60 × 50	0.173	0.0068	-
60	0.173	0.0068	0.250
70	0.132	0.0052	0.231
80	0.122	0.0048	0.196
90	0.112	0.0044	0.170
100	0.012	0.004	0.152
120 × 108	0.091	0.0036	-
120	0.081	0.0032	0.131
140	0.061	0.0024	0.120
150	0.061	0.0024	0.108
160	0.061	0.0024	0.098
180	0.051	0.002	0.090
200	0.051	0.002	0.076
220	0.051	0.002	0.065
250	0.041	0.0016	0.061
280	0.035	0.0014	0.056
300	0.031	0.0012	0.054
